Specifiche tecniche
Cat. Prodotto : Flange, Raccorderia e Guarnizioni
Range pressione : 64bar
Range temperatura : >200°C
Tipo attacco : Filettato
Documentazione
Tabella misureDescrizione

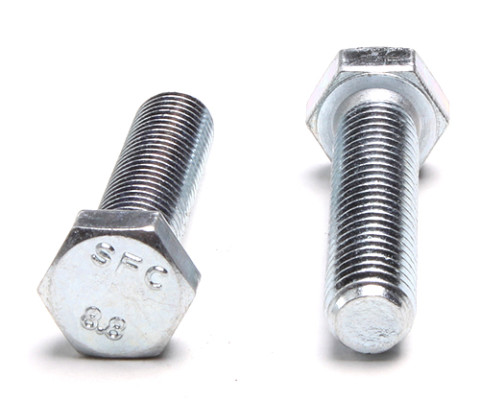

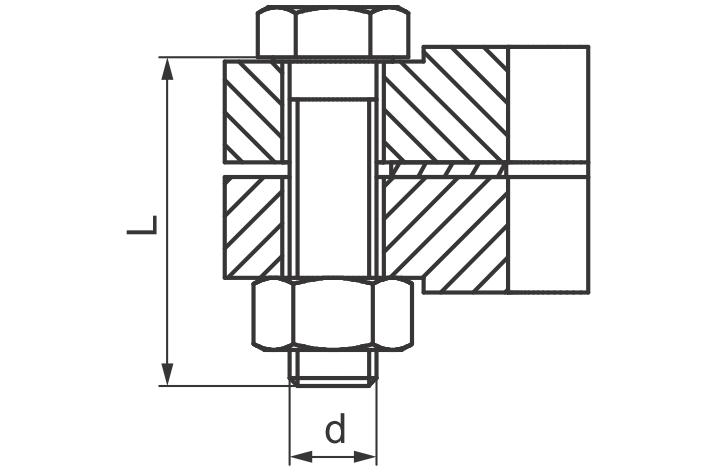

Tabella tecnica : BULLONI PER FLANGE DA PN 6 A PN 64
| DN | PN 6 | PN 10 | PN 16 | PN 25 | PN 40 | PN 64 |
| N° | d | L | gr.÷ | N° | d | L | gr.÷ | N° | d | L | gr.÷ | N° | d | L | gr.÷ | N° | d | L | gr.÷ | N° | d | L | gr.÷ |
| 10 | 4 | 10 | 40 | 60 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 65 | 130 |
| 15 | 4 | 10 | 40 | 60 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 65 | 130 |
| 20 | 4 | 10 | 45 | 70 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 55 | 100 | 4 | 12 | 55 | 100 | 4 | 16 | 70 | 250 |
| 25 | 4 | 10 | 45 | 70 | 4 | 12 | 50 | 95 | 4 | 12 | 50 | 95 | 4 | 12 | 55 | 100 | 4 | 12 | 55 | 100 | 4 | 16 | 75 | 280 |
| 32 | 4 | 12 | 45 | 90 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 20 | 80 | 420 |
| 40 | 4 | 12 | 45 | 90 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 20 | 85 | 450 |
| 50 | 4 | 12 | 45 | 90 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 4 | 16 | 65 | 240 | 4 | 16 | 65 | 240 | 4 | 20 | 85 | 450 |
| 65 | 4 | 12 | 45 | 90 | 4 | 16 | 60 | 230 | 4 | 16 | 60 | 230 | 8 | 16 | 70 | 250 | 8 | 16 | 70 | 250 | 8 | 20 | 85 | 450 |
| 80 | 4 | 16 | 60 | 230 | 4 | 16 | 65 | 240 | 8 | 16 | 65 | 240 | 8 | 16 | 70 | 250 | 8 | 16 | 70 | 250 | 8 | 20 | 90 | 500 |
| 100 | 4 | 16 | 60 | 230 | 8 | 16 | 65 | 240 | 8 | 16 | 65 | 240 | 8 | 20 | 75 | 400 | 8 | 20 | 80 | 420 | 8 | 22 | 95 | 900 |
| 125 | 8 | 16 | 65 | 240 | 8 | 16 | 70 | 250 | 8 | 16 | 70 | 250 | 8 | 22 | 80 | 550 | 8 | 22 | 80 | 550 | 8 | 27 | 110 | 1090 |
| 150 | 8 | 16 | 65 | 240 | 8 | 20 | 75 | 400 | 8 | 20 | 75 | 400 | 8 | 22 | 90 | 800 | 8 | 22 | 90 | 800 | 8 | 30 | 115 | 1200 |
| 200 | 8 | 16 | 70 | 250 | 8 | 20 | 80 | 420 | 12 | 20 | 80 | 420 | 12 | 22 | 90 | 800 | 12 | 27 | 100 | 1000 | 12 | 33 | 130 | 1900 |
| 250 | 12 | 16 | 70 | 250 | 12 | 20 | 85 | 450 | 12 | 24 | 90 | 600 | 12 | 27 | 100 | 1000 | 12 | 30 | 110 | 1150 | 12 | 33 | 140 | 2050 |
| 300 | 12 | 20 | 75 | 400 | 12 | 20 | 85 | 450 | 12 | 24 | 90 | 800 | 16 | 27 | 100 | 1000 | 16 | 30 | 120 | 1340 | 16 | 33 | 150 | 2150 |
| 350 | 12 | 20 | 80 | 420 | 16 | 20 | 85 | 450 | 16 | 24 | 95 | 850 | 16 | 30 | 110 | 1150 | 16 | 33 | 130 | 1900 | 16 | 36x3 | 165 | 2500 |
| 400 | 16 | 20 | 80 | 420 | 16 | 22 | 85 | 600 | 16 | 27 | 105 | 1050 | 16 | 33 | 120 | 1700 | 16 | 36x3 | 140 | 2300 | 16 | 39x3 | 175 | 3150 |
| 450 | 16 | 20 | 80 | 420 | 20 | 22 | 85 | 600 | 20 | 27 | 105 | 1050 | 20 | 33 | 120 | 1700 | 20 | 36x3 | 140 | 2300 |
| 500 | 20 | 20 | 80 | 420 | 20 | 22 | 90 | 800 | 20 | 30 | 110 | 1150 | 20 | 33 | 120 | 1700 | 20 | 39x3 | 150 | 2900 |
| 600 | 20 | 22 | 85 | 600 | 20 | 27 | 95 | 980 | 20 | 33 | 115 | 1600 | 20 | 36x3 | 140 | 2300 | 20 | 45x3 | 170 | 4400 |
| 700 | 24 | 22 | 85 | 600 | 24 | 27 | 100 | 1000 | 24 | 33 | 115 | 1600 | 24 | 39x3 | 150 | 2900 | 24 | 45x3 | 180 | 4500 |
| 800 | 24 | 27 | 90 | 950 | 24 | 30 | 105 | 1190 | 24 | 36x3 | 135 | 2200 | 24 | 45x3 | 150 | 4160 | 24 | 52x3 | 200 | 7000 |
| 900 | 24 | 27 | 95 | 980 | 28 | 30 | 110 | 1150 | 28 | 36x3 | 135 | 2200 | 28 | 45x3 | 170 | 4400 | 28 | 52x3 | 210 | 7200 |
| 1000 | 28 | 27 | 95 | 980 | 28 | 33 | 115 | 1600 | 28 | 39x3 | 140 | 2800 | 28 | 52x3 | 180 | 6700 | 28 | 52x3 | 220 | 7400 |
| 1200 | 32 | 30 | 100 | 1150 | 32 | 36x3 | 125 | 2100 | 32 | 45x3 | 160 | 4300 |
| 1400 | 36 | 33 | 110 | 1500 | 36 | 39x3 | 135 | 2600 | 36 | 45x3 | 165 | 4350 |
| 1600 | 40 | 33 | 115 | 1600 | 40 | 45x3 | 150 | 4160 | 40 | 52x3 | 185 | 6800 |
| 1800 | 44 | 36x3 | 120 | 2000 | 44 | 45x3 | 160 | 4300 | 52x3 | 195 | 6900 |
| 2000 | 49 | 39x3 | 130 | 2500 | 48 | 45x3 | 170 | 4400 | 48 | 56x4 | 205 |
